One simple toggle switch can control the fuel selector valves and the Vegtherm inline heater. (Shown here in a 2004 Golf).
Optima battery in 2004 Golf: replaces original. The Optima has the cranking power of the original battery, but a smaller footprint, which makes room for VM2 filter and valves to be mounted onto the plastic battery tray.
Hydraforce valves mounted in 2004 Golf.

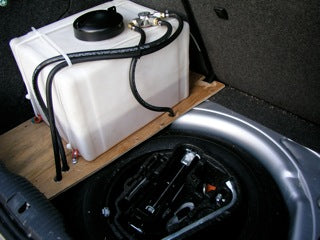

45 L tank in 2004 Golf, with Hotfox tank heater installed. (This car has done over 111,000 km on WVO Canola with no issues).
Here is the other side of the plywood spare tire cover. Spare tire can be removed without moving tank or hoses.
Here is the same 45L tank installed into a T3 Vanagon/Westfalia.
Custom installation into a 2004 Jetta wagon. The car was converted brand new. It has been driven over 150,000 km on Canola WVO.
We sell an updated version of this tank on the web site. It now has an integrated coolant loop built into the tank instead of the Hotfox. It goes under the spare tire, as well. There is a hole for the spare tire rod and an extension for the tie down rod so that the spare tire and tank are secured. The capacity is close to that of the original tank. A fuel level sender is included.
Here is a custom tank installed in a 2000 Jetta sedan.
Custom tank in a pickup.
Custom tank (Man-a-Fre?) which the owner had us install into his Landcruiser.
A 60L tank with a 1/2" standpipe and bulkhead fitting installed. This can be done where a Hotfox tank heater is not needed (oil will be liquid, ambient temperatures will be above freezing most of the time). This can be part of an inexpensive kit for warmer regions of the world. All components ship inside the tank. We have also shipped the 2T-SD45 and 2T-SD60 kits to various countries (e.g. northern Norway, Mongolia, etc.). The entire kit ships inside the tank.
A Toyota Hiace truck we converted a number of years ago.
A nice heavy gauge custom tank on the Hiace, and the VM2 fitler and Hydraforce valves mounted solidly and conveniently.
A large custom tank on a L300 Delica.
A heavy duty custom tank that was installed under a Mercedes Gwagen.
More photos of a custom tank in an L300 Delica.
A typical 60L tank with Hotfox - note that the Hotfox is installed in the corner of the tank, so that the heat/weight will not cause any sagging.
A custom tank in a BJ60 Toyota Landcruiser.
The 45L tank also fits in behind the wheel arch in a BJ60.
A custom tank that was built for a Mercedes sedan.
A custom tank for late 90's Suburban.
Hydraforce valves mounted to VM2, on an L300 Delica.
Note the use of reinforcing plates.
Vegtherm on an L300 Delica.
